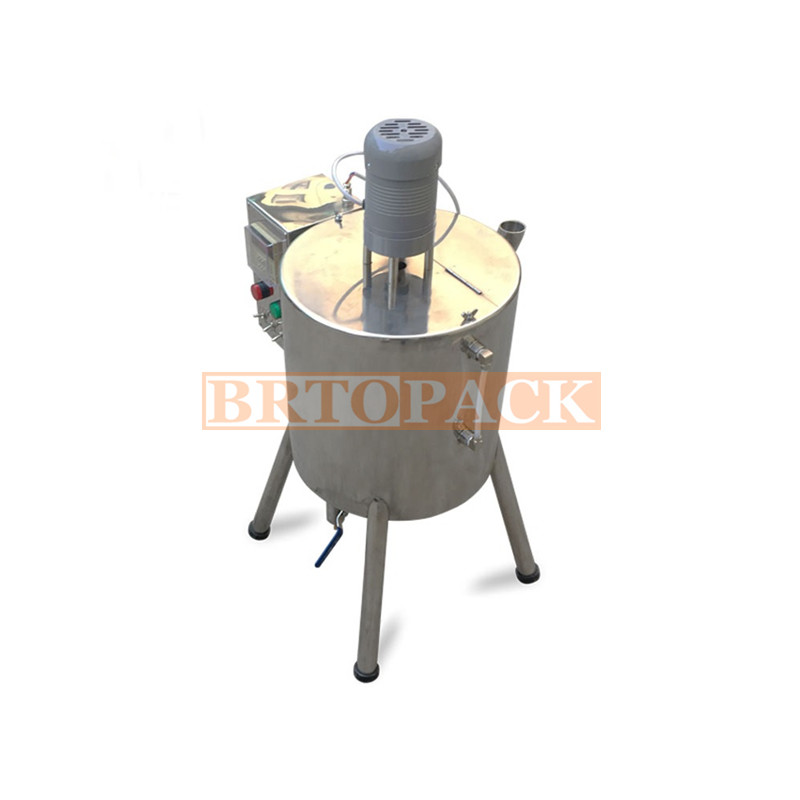

Lipstick Filling Machine With Heating Mixing

Introduction

It mainly consists of heating and mixing tank,  and filling part. The filling nozzle is at the bottom of tank. The whole equipment adopts paddle stirring and pneumatic filling valve. Filling head is heated in nozzle jacket. Pedal control and automatic filling transform by switch.

Working process: Take lipstick into the tank, be heated to a definite temperature, stir as well then filling into mold. stirring speed is infinitely adjustable.

Application

This lipstick filling machine is suitable for water-based solution, paste, lipstick, paraffin wax material such as melt mixing, heat of mixing equipment, especially for small batch production lipstick, laboratory test for cosmetics and food and pharmaceutical industries.This machine adopts full stainless steel case, elegant appearance, easy to clean, easy to operate.

Technical Parameters

Lipstick Filling Machine

Work Mode: Electric

Heating Method: Heating Pipe Heated

Heat Preservation Function: Yes

Function: Mixing,Stirring

Volume Of Hopper: 15/30L

Voltage: 220/110V

Power: 35W

Container/Hopper/Housing Material: Stainless Steel

Filling Speed: 10-30pcs/min

Working Temperature: 100-300 degree within

Size: 810*380*480MM
