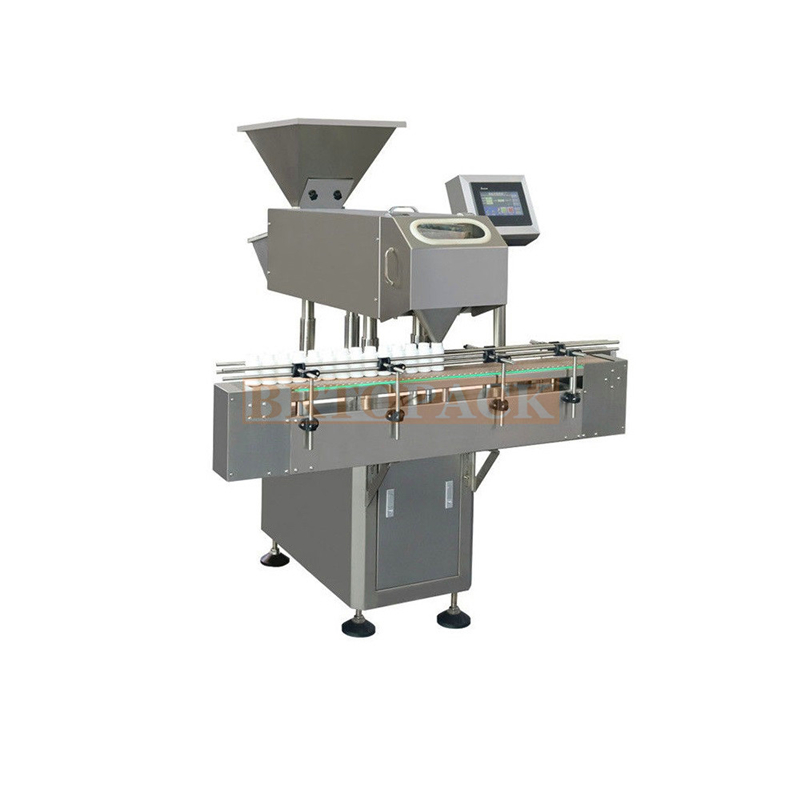

Automatic Tablets Capsule Counting Machine

Product Profile

This type of full automatic high speed counting machine with vibration blanking for pharmaceutical can be capable of changing all sizes of bottles. Due to counting machine with vibration blanking flexible adjustment and convenient operation. All types of medical things can be freely counted by this counting machine with vibration blanking and can not just for tablets but also other solid pharmacy things bu counter machine with vibration blanking.

Tablet counting machine with vibration blanking has all types of the advantages and the functions like the automatic real-time detection. Capsule counter machine with vibration blanking the faulty alarm and many other things to ensure the quantity and the high accuracy of counting products.

This full automatic high speed counting machine with vibration blanking for pharmaceutical has the functions of the automatic detection. And the rejection of counter machine with vibration blanking to detect and reject all types of defected products.

Parameters

Product name: Automatic Tablets Capsule Counting Machine

Model: JF-8

Type: Electronic counting machine

Usage: Counting Tablet/Capsule/Pill/Candy/Gummy

Vibration groove tracks: 8 channel

Applicable industries: Manufacturing Plant, Food&Beverage Factory, Food&Beverage Shops, Pharmacy, Pharmaceutical, Capsule Tablet Pill, Candy Gummy

Counting precision: 99.8%

Applicable material: Tablet/Capsule/Pill/Candy/Gummy

Applicable bottle type: 10-500 ML/Dia.25-110mm/height 40-240mm round and square plastic bottle

Capacity: 10-35 bottle/min

Suit for: 0-5#capsule, soft capsule, Φ5.5-12compressed tablet, special-shaped tablet, sugarcoated tablet, Φ3~12 pill

Capacity: 180000 pcs/h

Filling range: 2-9999 pcs/bottle (Adjustable)

Material: Stainless steel 304, 316

Voltage: 380V/220V

Power: 0.6Kw

Dimension: 1400*1650*1650mm

Weight: 360KG

Working Principle

The block bottle device on the passing bottle-track of the conveying bottle system make the bottles which came from the previous equipment stay in the bottling position,waiting to be filled in. The medicine goes into the medicine container in order by the vibration of the feeding corrugated plate. There’s a counting photoelectric sensor installed on the medicine container, after counting of the medicine in the medicine container by the counting photoelectric sensor, the medicine goes into the bottle in the bottling position.

Applicable Industries

Electronic Counting Machine is mainly suitable for medicine, industry, chemical industry, food and other industries. It can be widely used for counting and bottling solid preparations, such as pills, sugar-coated tablets, plain tablets, soft and hard capsules and other shapes of medicine granules. This machine can be used independently, and can also form a linked production line with other supporting equipment such as bottle unscrambler, desiccant inserter, capping machine, sealing and labeling machine.

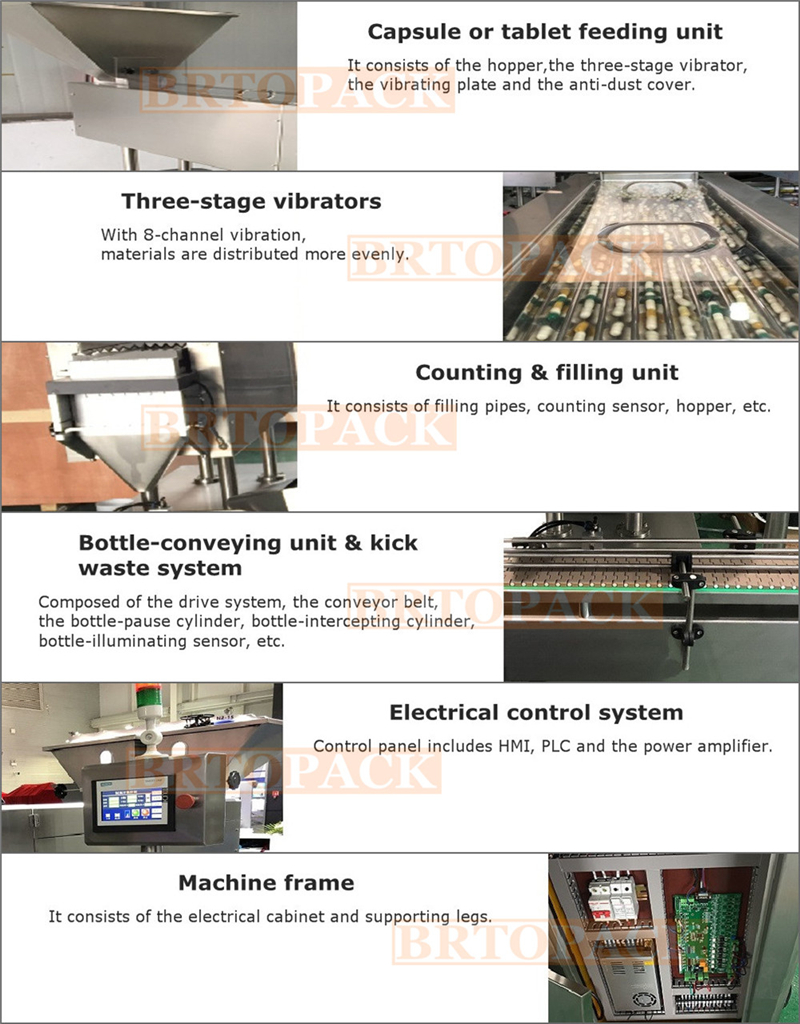

Features
1.Three-stage vibrators. With 8-channel vibration, materials are distributed more evenly.
2.Reliable operation. It runs stably and smoothly with low noise.
3.High dust resistance. It adopts unique anti-dust photoelectric sensor.
4.Accurate counting. Due to photoelectric sensor detection and imported large PLC counting, bottle-filling error meets the international standard.
5.Optional function. If special components are added, it can possess functions such as rejecting unqualified capsules or tablets and photoelectric detection alarming for lack of bottles or bottles being blocked.
6.Simple operation. With intelligent design, various operating parameters can be set in advance.
7.Sealed and dustproof. It is equipped with a dust box to reduce dust pollution. (Optional)
8.The platform height can be adjusted according to the bottle height.
9.The machine is equipped with a power supply voltage stabilizing system, so it can still work normally in areas with unstable power supply.

10.Easy maintenance. The operator only requires simple training as the disassemble, cleaning and replacement of parts are easy to carry out without the need of tools.

We have various types (JF-12/16/24/32/48) of capsule counter,

please tell us your needs, and we will recommend a suitable machine for you.

Packaging Details

Electronic counting machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the electronic counting machine during transportation.
